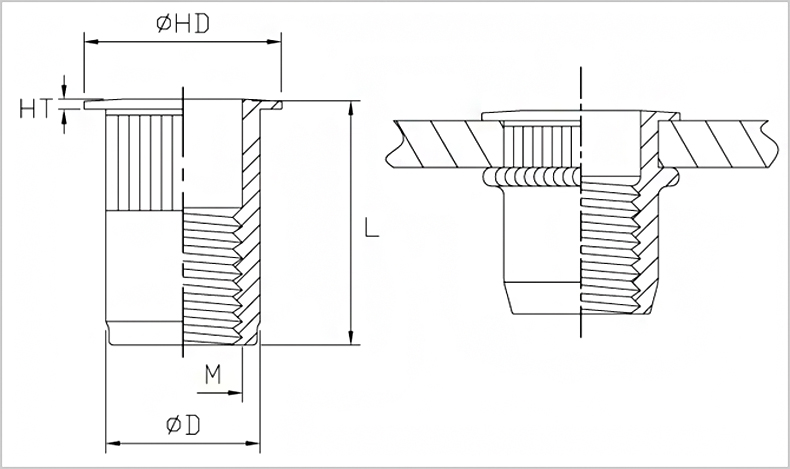

AB SERIES \ LARGE FLANGE, OPEN END (Knurled)

Part No.

Thread Size

Hole Size

 +0.1 / -0.0

D(mm)

+0.0 / -0.1

L(mm)

±0.4

HD(mm)

±0.3

HT(mm)

+0.15 / -0.05

Grip Range

ABM4

M4 x 0.7

6.8

6.75

11.70

9.5

0.76

0.5~2.0

ABM5

M5 x 0.8

7.6

7.55

13.10

10.10

0.76

0.5~3.3

ABM6

M6 x 1.0

10.0

9.90

15.75

12.70

0.76

0.7~4.0

ABM8

M8 x 1.25

13.5

13.45

18.65

17.00

0.89

0.7~4.0

ABM10

M10 x 1.5

13.5

13.45

18.65

17.00

0.89

0.7~4.0

Part No.

Thread Size

Hole Size +0.004 / -0.0

D(inch)

+0.0 / -0.004

L(inch)

±0.015

HD(inch)

±0.012

HT(inch)

+0.006 / -0.002

Grip Range

AB632

UNC6-32

.266

.265

.460

.375

.03

0.02~0.08

AB832

UNC8-32

.266

.265

.460

.375

.03

0.02~0.08

AB1024

UNC10-24

.297

.296

.515

.400

.03

0.02~0.13

AB1032

UNC10-32

.297

.296

.515

.400

.03

0.02~0.13

AB420

UNC1/4-20

.391

.390

.620

.500

.03

0.027~0.150

AB518

UNC5/16-18

.531

.530

.735

.670

.035

0.027~0.150

AB616

UNC3/8-16

.531

.530

.735

.670

.035

0.027~0.150
