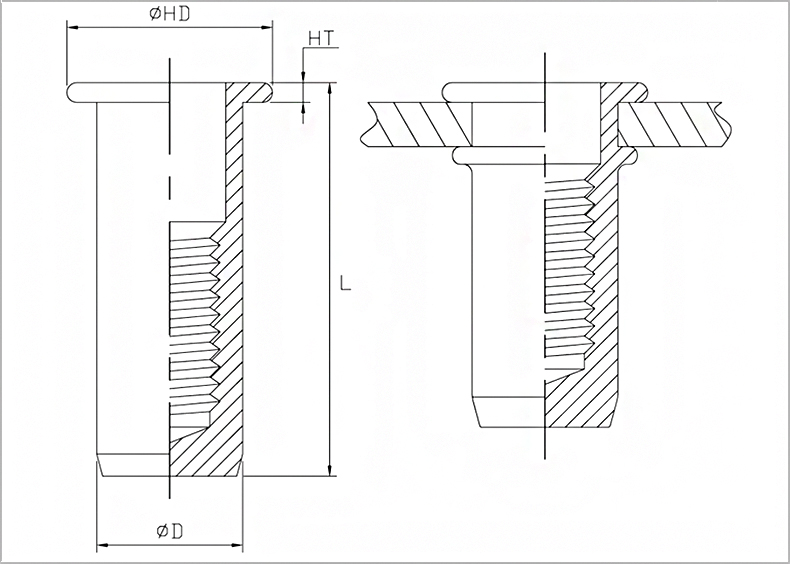

EUB-C SERIES \ Flat Head, Closed End (~K=Knurled)

Part No.

Thread Size

Hole Size

+0.1 / -0.0

D(mm)

+0.0 / -0.1

L(mm)

±0.4

HD(mm)

±0.3

HT(mm)

+0.15 / -0.05

Grip Range

EUBM4-C/EUBM4K-C

M4 x 0.7

6.1

6.0

16.60

9.0

0.8

0.5~2.0

EUBM5-C/EUBM5K-C

M5 x 0.8

7.1

7.0

17.50

10.0

1.0

0.5~2.5

EUBM6-C/EUBM6K-C

M6 x 1.0

9.1

9.0

22.40

13.0

1.5

1.0~3.5

EUBM8-c/EUBM8K-C

M8 x 1.25

11.1

11.0

27.00

14.5

1.5

1.0~4.0

EUBM10-C/EUBM10K-C

M10 x 1.5

13.1

13.0

31.20

16.0

1.6

1.0~4.0

Part No.

Thread Size

Hole Size

 +0.004 / -0.0

D(inch)

+0.0 / -0.004

L(inch)

±0.015

HD(inch)

±0.012

HT(inch)

+0.006 / -0.002

Grip Range

EUB832-C/EUB832K-C

UNC 8-32

0.240

0.236

0.65

0.354

0.032

0.02~0.10

EUB1024-C/EUB1024K-C

UNC 10-24

0.280

0.276

0.69

0.393

0.040

0.02~0.10

EUB420-C/EUB420K-C

UNC 1/4-20

0.358

0.354

0.88

0.512

0.059

0.04~0.14

EUB518-C/EUB518K-C

UNC 5/16-18

0.437

0.433

1.06

0.571

0.059

0.04~0.16

EUB616-C/EUB616K-C

UNC 3/8-16

0.516

0.512

1.23

0.630

0.063

0.04~0.16
