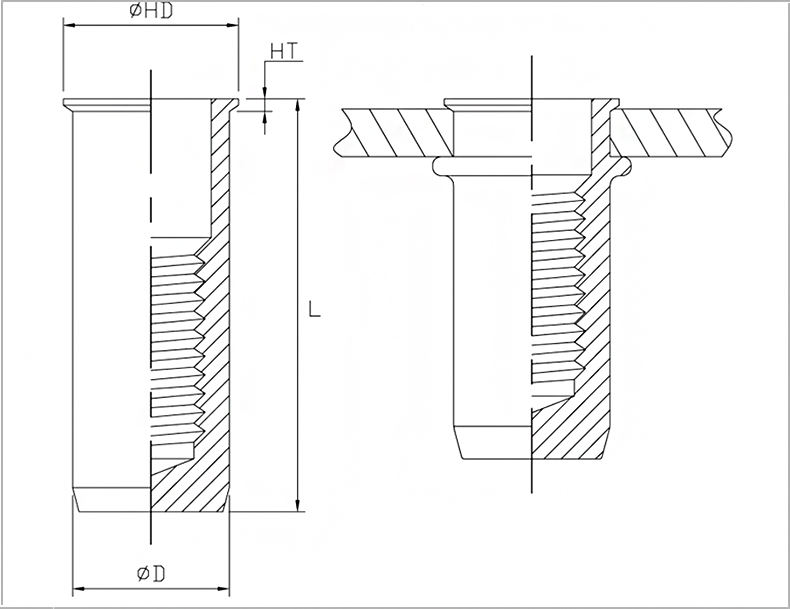

USS-C SERIES \ Small Flange, Closed End (~K=Knurled)

Part No.

Thread Size

Hole Size

 +0.1 / -0.0

D(mm)

+0.0 / -0.1

L(mm)

±0.4

HD(mm)

±0.3

HT(mm)

+0.15 / -0.05

Grip Range

USSM4-C/USSM4K-C

M4 x 0.7

6.4

6.3

14.9

7.3

0.5

0.5~2.5

USSM5-C/USSM5K-C

M5 x 0.8

7.2

7.1

20.20

8.1

0.5

0.5~2.5

USSM6-C/USSM6K-C

M6 x 1.0

9.6

9.5

23.40

10.5

0.5

1.0~4.0

USSM8-C/USSM8K-C

M8 x 1.25

10.6

10.5

23.60

11.5

0.5

1.0~4.0

USSM10-C/USSM10K-C

M10 x 1.5

12.8

12.7

28.20

13.7

0.5

1.0~4.0

Part No.

Thread Size

Hole Size

 +0.004 / -0.0

D(inch)

+0.0 / -0.004

L(inch)

±0.015

HD(inch)

±0.012

HT(inch)

+0.006 / -0.002

Grip Range

USS632-C/UCC632K-C

UNC 6-32

0.253

0.249

0.59

0.289

0.02

0.02~0.10

USS832-C/USS832K-C

UNC 8-32

0.253

0.249

0.59

0.289

0.02

0.02~0.10

USS1024-C/USS1024K-C

UNC 10-24

0.284

0.280

0.80

0.320

0.02

0.02~0.10

USS1032-C/USS1032K-C

UNC 10-32

0.284

0.280

0.80

0.320

0.02

0.02~0.10

USS420-C/USS420K-C

UNC 1/4-20

0.378

0.374

0.92

0.414

0.02

0.04~0.15

USS518-C/USS518K-C

UNC 5/16-18

0.420

0.414

0.93

0.456

0.02

0.04~0.15

USS616-C/USS616-C

UNC 3/8-16

0.504

0.500

1.11

0.540

0.02

0.04~0.15
