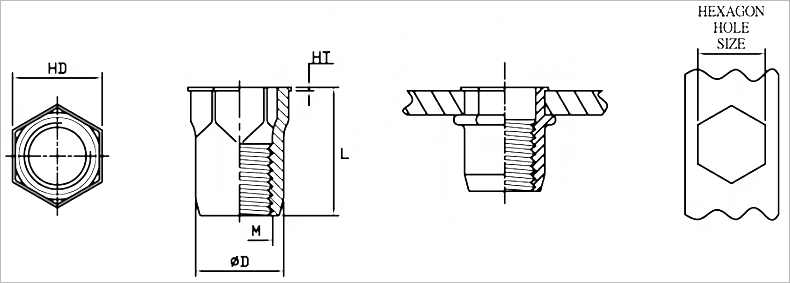

HHS SERIES \ SMALL FLANGE, OPEN END

Part No.

Thread Size

Hole Size

+0.1 / -0.0

D(mm)

+0.0 / -0.1

L(mm)

±0.4

HD(mm)

±0.3

HT(mm)

+0.15 / -0.05

Grip Range

HHSM4

M4 x 0.7

6.45

6.35

10.4

7.0

0.4

0.5~2.0

HHSM5

M5 x 0.8

7.20

7.1

11.8

8.0

0.6

0.5~3.0

HHSM6

M6 x 1.0

9.60

9.5

14.6

10.6

0.6

0.5~3.0

HHSM8

M8 x 1.25

10.60

10.5

16.0

11.5

0.6

0.5~3.5

HHSM10

M10 x 1.5

12.70

12.6

18.5

14.0

0.6

0.7~3.8
