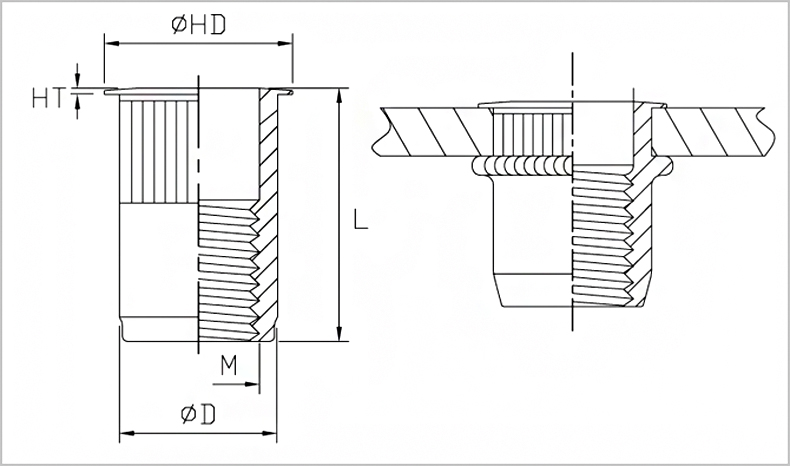

AS SERIES \ SMALL FLANGE,  OPEN END (Knurled)

Part No.

Thread Size

Hole Size

+0.1 / -0.0

D(mm)

+0.0 / -0.1

L(mm)

±0.4

HD(mm)

±0.3

HT(mm)

+0.15 / -0.05

Grip Range

ASM4

M4 x 0.7

6.8

6.75

11.45

7.87

0.48

0.5~2.0

ASM5

M5 x 0.8

7.6

7.55

12.85

8.64

0.48

0.5~3.3

ASM6

M6 x 1.0

10.0

9.90

15.50

11.50

0.55

0.7~4.0

ASM8

M8 x 1.25

13.5

13.45

18.30

15.11

0.55

0.7~4.0

ASM10

M10 x 1.5

13.5

13.45

18.30

15.11

0.55

0.7~4.0

Part No.

Thread Size

Hole Size +0.004 / -0.0

D(inch)

+0.0 / -0.004

L(inch)

±0.015

HD(inch)

±0.012

HT(inch)

+0.006 / -0.002

Grip Range

AS632

UNC6-32

.266

.265

.450

.295

.019

0.02~0.08

AS832

UNC8-32

.266

.265

.450

.295

.019

0.02~0.08

AS1024

UNC10-24

.297

.296

.505

.326

.019

0.02~0.13

AS1032

UNC10-32

.297

.296

.505

.326

.019

0.02~0.13

AS420

UNC1/4-20

.391

.390

.610

.420

.022

0.027~0.150

AS518

UNC5/16-18

.531

.530

.720

.595

.022

0.027~0.150

AS616

UNC3/8-16

.531

.530

.720

.595

.022

0.027~0.150
