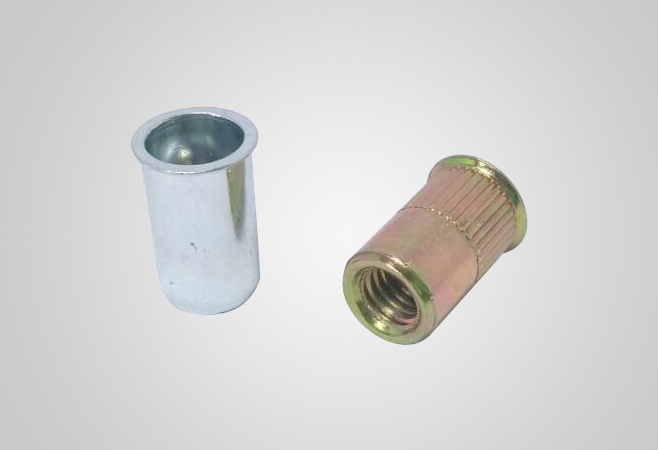

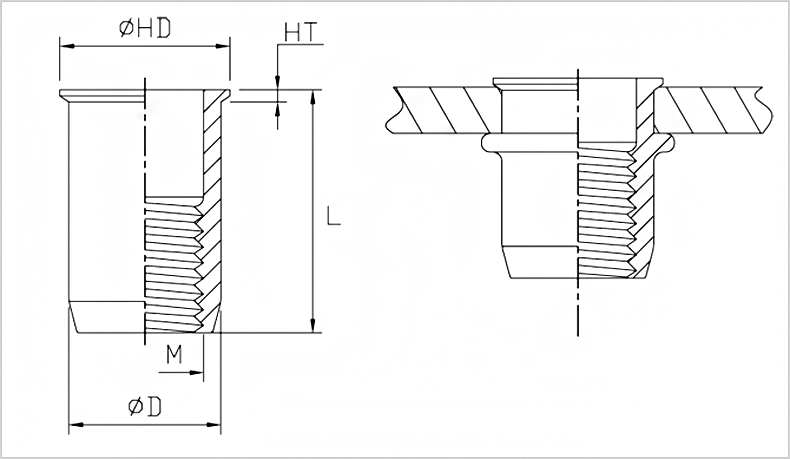

EUS SERIES \ Small Flange, Open End (~K=Knurled)

Part No.

Thread Size

Hole Size

+0.1 / -0.0

D(mm)

+0.0 / -0.1

L(mm)

±0.4

HD(mm)

±0.3

HT(mm)

+0.15 / -0.05

Grip Range

EUSM3/EUSM3K

M3 x 0.5

5.10

5.0

9.0

6.0

0.5

0.5~2.0

EUSM4/EUSM4K

M4 x 0.7

6.10

6.0

10.0

7.0

0.5

0.5~2.5

EUSM5/EUSM5K

M5 x 0.8

7.10

7.0

12.0

8.0

0.5

0.5~2.5

EUSM6/EUSM6K

M6 x 1.0

9.10

9.0

15.0

10.0

0.5

1.0~4.0

EUSM8/EUSM8K

M8 x 1.25

11.10

11.0

16.0

12.0

0.5

1.0~4.0

EUSM10/EUSM10K

M10 x 1.5

13.10

13.0

18.6

14.0

0.5

1.0~4.0
