Specifications :

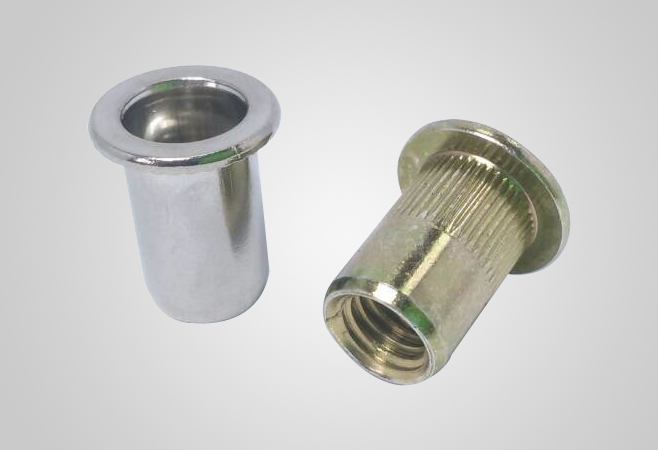

USB SERIES \ Flat Head, Open End (~K=Knurled) |
|||||||
Part No. |
Thread Size |
Hole Size +0.004 / -0.0 |
D(inch) +0.0 / -0.004 |
L(inch) ±0.015 |
HD(inch) ±0.012 |
HT(inch) +0.006 / -0.002 |
Grip Range |
USB440/USB440K |
UNC4-40 |
.201 |
.197 |
.386 |
.315 |
.032 |
0.02~0.08 |
USB832/USB832K |
UNC8-32 |
.240 |
.236 |
.445 |
.354 |
.032 |
0.02~0.10 |
USB1024/USB1024K |
UNC10-24 |
.280 |
.276 |
.493 |
.393 |
.040 |
0.02~0.10 |
USB420/USB420K |
UNC1/4-20 |
.358 |
.354 |
.630 |
.512 |
.059 |
0.04~0.14 |
USB518/USB518K |
UNC5/16-18 |
.437 |
.433 |
.709 |
.571 |
.059 |
0.04~0.16 |
USB616/USB616K |
UNC3/8-16 |
.516 |
.512 |
.850 |
.630 |
.063 |
0.04~0.16 |

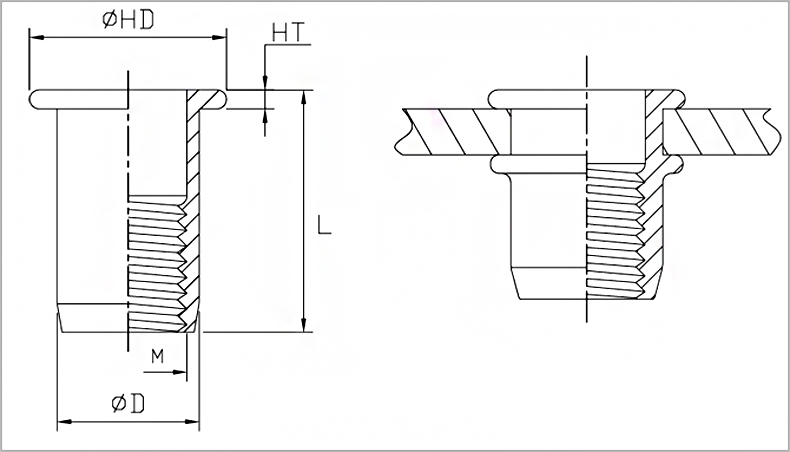

Figure:
|
