Specifications：
|

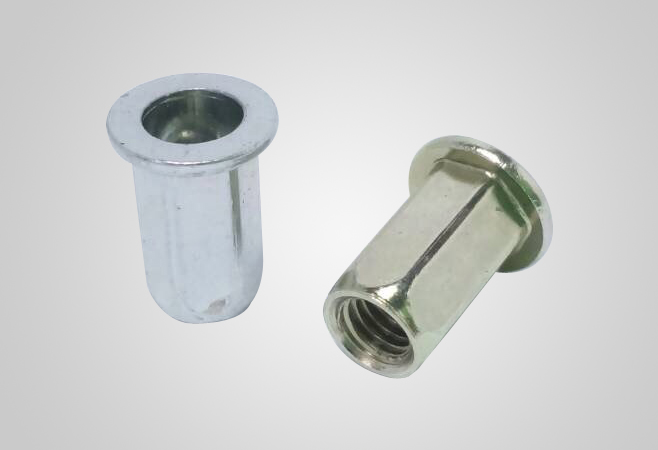

HB SERIES \ FLAT HEAD, OPEN END |
|||||||
|
Part No. |
Thread Size |
Hole Size +0.1 / -0.0 |
D(mm) +0.0 / -0.1 |
L(mm) ±0.4 |
HD(mm) ±0.3 |
HT(mm) +0.15 / -0.05 |
Grip Range |
|
HBM4 |
M4 x 0.7 |
6.1 |
5.9 |
10.7 |
9.0 |
0.9 |
0.5~2.0 |
|
HBM5 |
M5 x 0.8 |
7.1 |
6.9 |
13.7 |
10.0 |
0.9 |
0.5~3.3 |
|
HBM6 |
M6 x 1.0 |
9.1 |
8.9 |
16.0 |
13.0 |
1.5 |
0.5~3.3 |
|
HBM8 |
M8 x 1.25 |
11.1 |
10.9 |
18.0 |
16.0 |
1.5 |
0.5~3.3 |
|
HBM10 |
M10 x 1.5 |
13.1 |
12.9 |
21.0 |
19.0 |
2.0 |
0.5~3.5 |

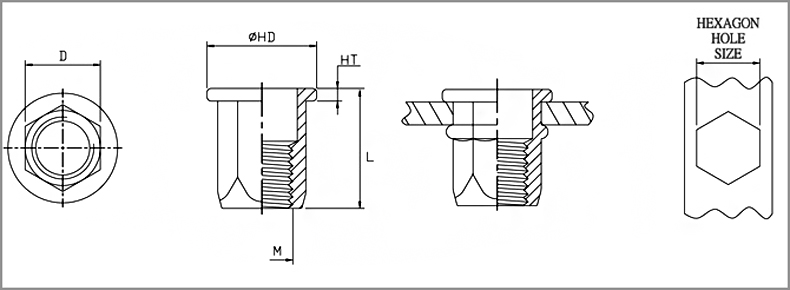

Figure：
|
|
