Specifications:



Specifications

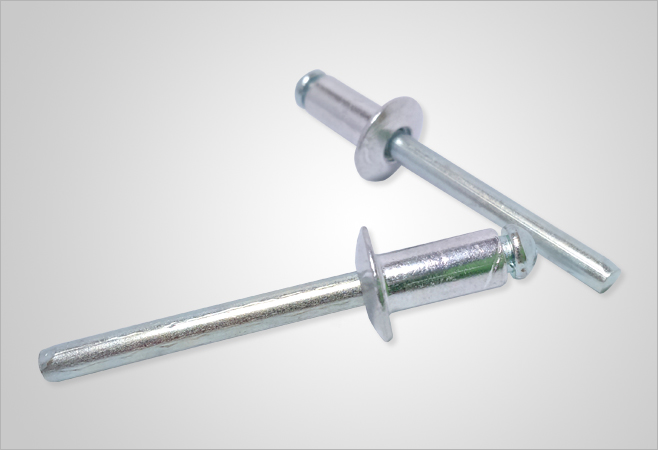

Blind Rivets System

Item Size

A.S

S.S

X.S

X.X



A(HEAD DIA)

B(BODY DIA)

(INCH)

C(LENGT)

(INCH)

Aluminum Rivet
Steel. Shaft

Steel. Rivet
Steel. Shaft

Stainless Steel Rivet
Steel. Shaft

Stainless Steel Rivet
Stainless Steel Shaft

3-2

4.5mm

2.4mm

(3/32)

5.8mm

(.23)

O

O





3-3

4.5mm

2.4mm

(3/32)

7.4mm

(.30)

O

O





3-4

4.5mm

2.4mm

(3/32)

8.4mm

(.33)

O

O





4-1

6.4mm

3.2mm

(1/8)

4.8mm

(.19)

O

O

O

O

4-2

6.4mm

3.2mm

(1/8)

6.4mm

(.25)

O

O

O

O

4-3

6.4mm

3.2mm

(1/8)

8.0mm

(.315)

O

O

O

O

4-4

6.4mm

3.2mm

(1/8)

9.6mm

(.38)

O

O

11L O

11L O

4-5

6.4mm

3.2mm

(1/8)

11.5mm

(.45)

O

O

12.3L O

12.3L O

4-6

6.4mm

3.2mm

(1/8)

12.7mm

(.50)

O

O





4-8

6.4mm

3.2mm

(1/8)

16.1mm

(.63)

O

O





5-1

8.0mm

4.0mm

(5/32)

5.8mm

(.23)

O

O

O

O

5-2

8.0mm

4.0mm

(5/32)

7.0mm

(.275)

O

O

O

O

5-3

8.0mm

4.0mm

(5/32)

8.5mm

(.335)

O

O

O

O

5-4

8.0mm

4.0mm

(5/32)

10.0mm

(.394)

O

O

O

O

5-5

8.0mm

4.0mm

(5/32)

11.4mm

(.448)

O

O

O

O

5-6

8.0mm

4.0mm

(5/32)

13.0mm

(.511)

O

O

O

O

5-8

8.0mm

4.0mm

(5/32)

16.5mm

(.65)

O

O





5-10

8.0mm

4.0mm

(5/32)

19.5mm

(.77)

O

O





6-1

9.0mm

4.8mm

(3/16)

6.4mm

(.25)

O

O

O

O

6-2

9.0mm

4.8mm

(3/16)

7.4mm

(.38)

O

O

8L O

8L O

6-3

9.0mm

4.8mm

(3/16)

9.6mm

(.44)

O

O

10.5L O

10.5L O

6-4

9.0mm

4.8mm

(3/16)

11.0mm

(.50)

O

O





6-5

9.0mm

4.8mm

(3/16)

12.7mm

(.57)

O

O

13.5L O

13.5L O

6-6

9.0mm

4.8mm

(3/16)

14.5mm

(.69)

O

O

16.5L O

16.5L O

6-8

9.0mm

4.8mm

(3/16)

17.5mm

(.80)

O

O





6-10

9.0mm

4.8mm

(3/16)

20.4mm

(.95)

O

O





6-12

9.0mm

4.8mm

(3/16)

24.0mm

(.00)

O

O

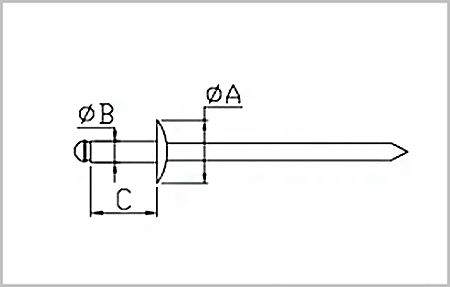

      Figure
